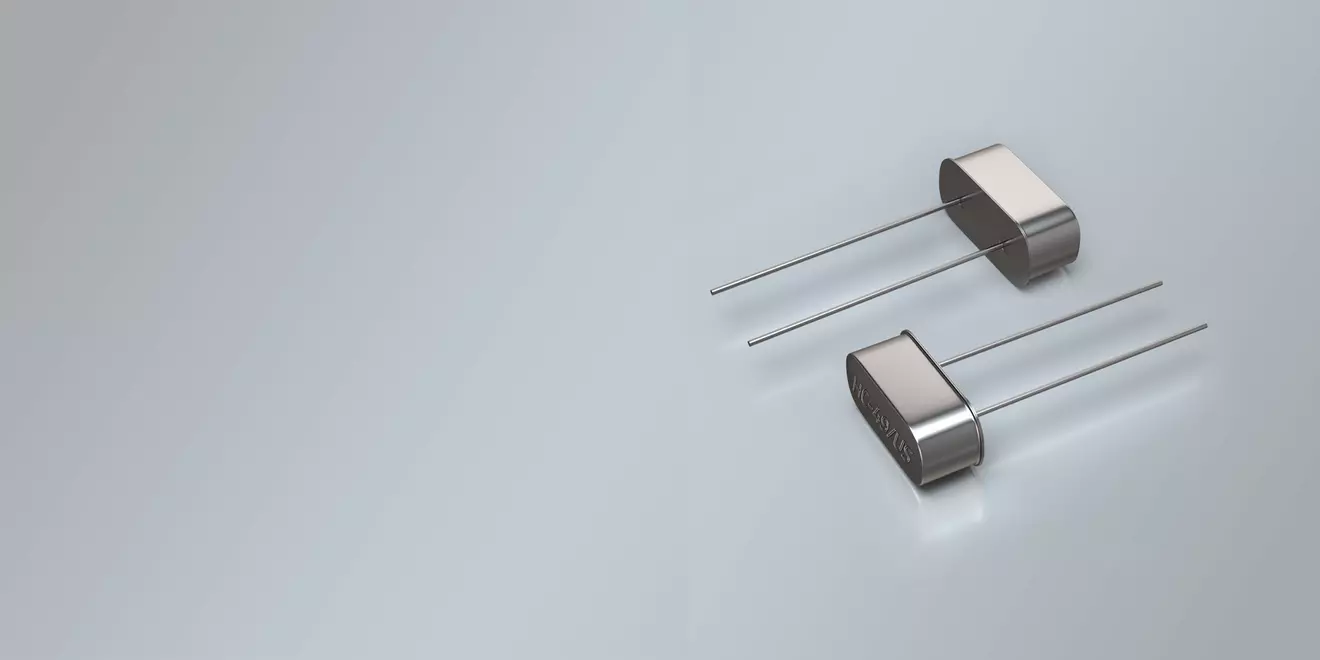

THT QUARTZ CRYSTAL HC-49/US 2 LEADS 11.05 x 4.65 mm 3.48755 - 75.0 MHz
- Alta fiabilidad a bajo coste
- Bajo perfil: altura máxima del encapsulado de 3,5 y 2,5 mm
- Rango de temperatura ampliado a -55/+125 °C
- Excelente generador de señales de reloj para CPU
- Calificado para aplicaciones de automoción
Nombre del producto
Quartz Crystal
Package
THT Metal

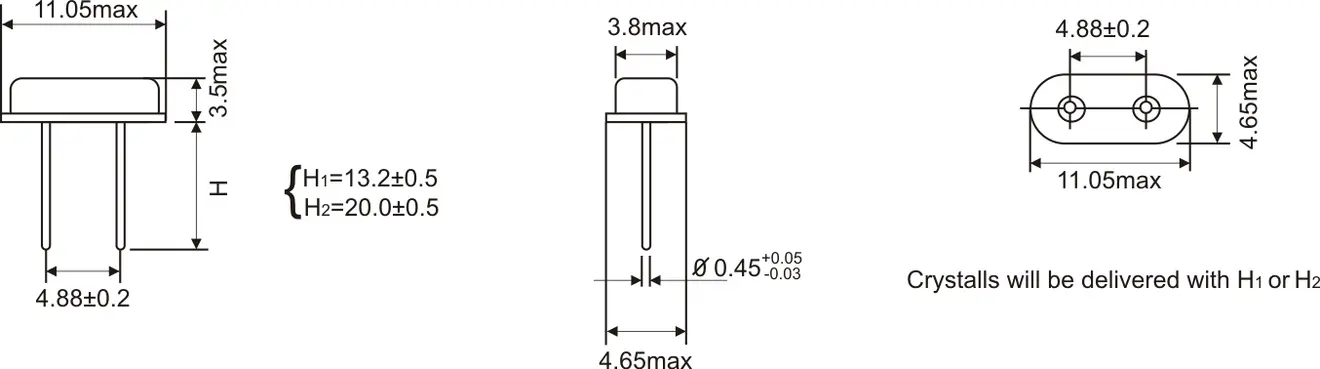

Dimensiones (Ancho x Fondo x Alto)
11.05 x 4.65 x 3.5 mm
Rango de Frecuencia
3.49 - 75.00 MHz
DELIVERY FORM
Standard = Bulks for 2 leads and 3 leads housing
Option = Paper Tape on Reel only for 2 leads housingSTORAGE TEMPERATURE
-55°+125°C
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
AGING
±3 ~ ±5 ppm per year standard (±2 ppm available as option)
DRIVE LEVEL
100 µW typical (0.01 mW ~ 1 mW possible)
SHUNT CAPACITANCE C0
7 pF max.
WORKING TEMPERATURE RANGES
0/+50°C ~ -55/+125°C
LOAD CAPACITANCE (CL)
6 pF ~ 50 pF
FREQUENCY TOLERANCES AT 25°C
±5 ppm ~ ±50 ppm
FREQUENCY RANGES (SEPARATED)
3.48755 ~ 36.0 MHz AT-Fundamental
24.0 ~ 44.0 MHz BT-Fundamental
24.576 ~ 75.0 MHz 3rd OvertoneOPTIONS FOR HOUSING
Insulator = for 2 leads and 3 leads housing Cutted leads = only for 2 leads housing
NUMBER OF LEADS
2 (standard)
| ±10 ppm | ±15 ppm | ±20 ppm | ±30 ppm | ±50 ppm | |
|---|---|---|---|---|---|
| 0/70 °C | • | • | • | • | • |
| -10/60 °C | • | • | • | • | • |
| -20/70 °C | • | • | • | • | • |
| -40/85 °C | • | • | • | • | |
| -40/125 °C | • | • | |||
| 0/50 °C | • | • | • | • | • |
| -55/125 °C | • |
