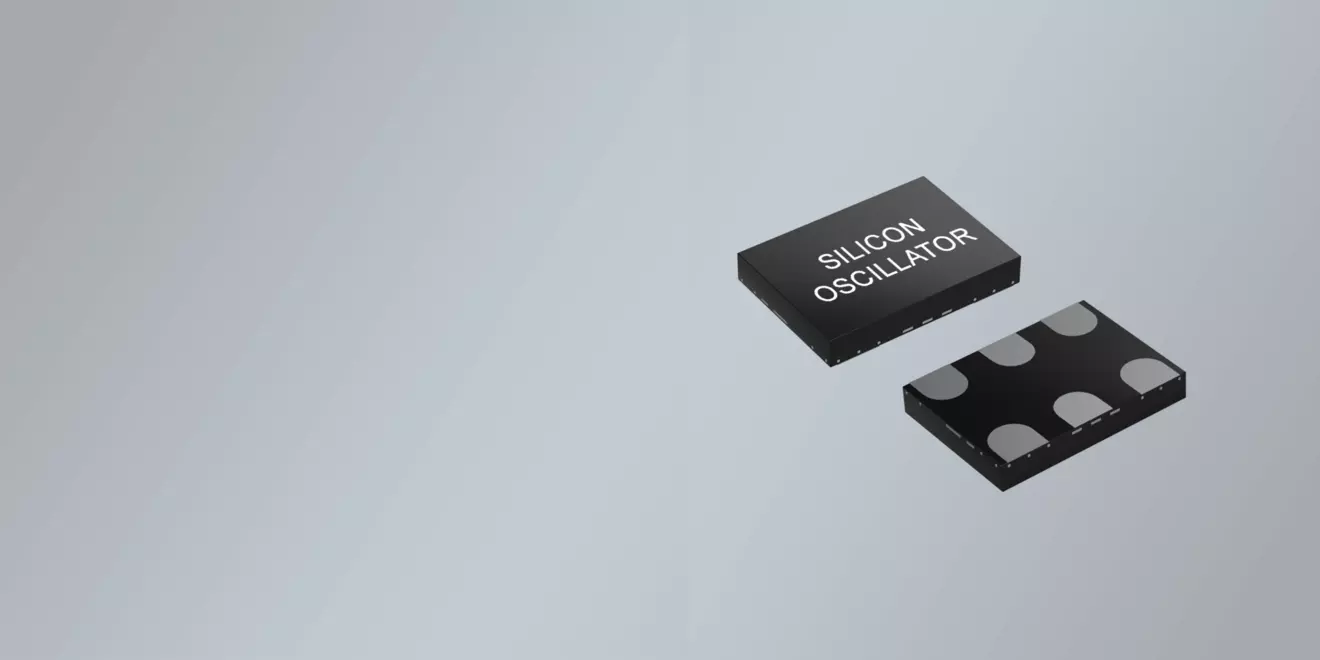

SMD DIFFERENTIAL 1 - 625 MHz SILICON OSCILLATORS
- Oscilador diferencial Oscilador de bajo coste
- Excelente fiabilidad a largo plazo
- Excelente estabilidad de frecuencia tan baja como ±10 ppm a más de -40/+85°C
- Resistente envejecimiento a largo plazo y fluctuación de fase ultrabaja
- Muestras disponibles en un breve plazo de entrega
- Recomendado para su uso en aplicaciones PCI-Express Gen1, Gen2, Gen3 y Gen4
- Datos generales
- Características y ventajas
- Aplicaciones
- Consultas sobre el producto
- Solicitud de muestra
Nombre del producto
DLPO-3
Package
SMD QFN/6pad
Dimensiones (Ancho x Fondo x Alto)
3.2 x 2.5 ~ 7.0 x 5.0
Rango de Frecuencia
1.00 - 220.00 MHz
FREQUENCY RANGE 2
220.00 -625.00 MHz
PRODUCT NAME 2
DLPO-4
PHASE JITTER (RMS)
0.6 ps
OUTPUT SIGNAL
LVPECL / LVDS
ENVIRONMENTAL REQUIREMENTS
Pb-free, RoHS and REACH compliant
DELIVERY FORM
Bulks or Tubes for sampling
Tape & Reel for serial quantitiesOPERATING TEMPERATURE RANGE
0/+70°C ~ -40/+85°C
FREQUENCY STABILITY
±10 ppm to ±50 ppm
SUPPLY VOLTAGE
2.5 V ~ 3.63 V
• Ultra fast lead time
• Reduce inventory overhead
• Mitigate shortage risks
• Increased timing margin translates into fewer system errors and higher long term reliability
• 100% drop in replacement for quartz, SAW and overtone oscillators without any design changes
• High frequency stability of ±10PPM
• Increased timing margin
• Fewer system errors
• Higher long term reliability
• Extensive programmability
• Customized specifications for optimal system performance
• Easy availability of any device specification within the operating range
• 0.6 ps integrated RMS phase jitter (12 kHz to 20 MHz)
• Excellent jitter margin for the most stringent applications such as SONET
- Mobile Communication
DATASHEET: SMD Differential 1-220MHz Silicon Oscillator (DLPO-3)
DATASHEET: SMD Differential 220-625MHz Silicon Oscillator (DLPO-4)
